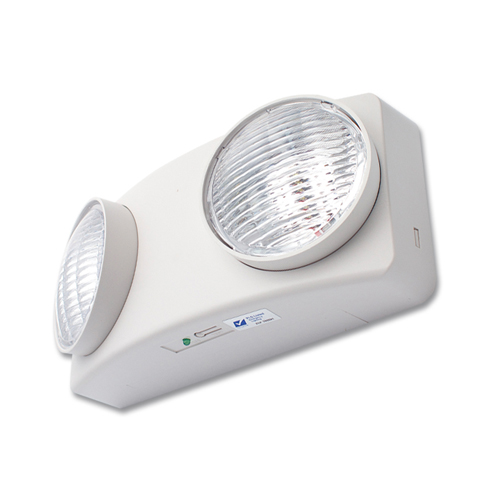

Minnie MR203L NC
TECHNICAL SPECIFICATIONS
| WEIGHT | 1.2 kg |
|---|---|
| DIMENSIONS | 305 x 85 x 135 mm |
| MODE OF OPERATION | Non-Maintained |
| LAMP | 2 x 3W High Power LED |
| RATED DURATION | 2 hrs and others |
| MAINS SUPPLY | 230 Volts |
| MAINS FREQUENCY | 50/60 Hz |
| POWER CONSUMPTION | < 1.1W |
| BATTERY | High temp nickel cadmium |
| CHARGE MONITOR | Green LED Ø5mm |
| TEST FACILITY | Micro Switch |
| SAFETY FEATURE | Low volt cut-off preventing battery overdischarge |
| FITTING CONSTRUCTION | Injection moulded thermoplastic ABS; UL 94V-0 flame rating, two fully adjustable glare-free round shaped heads |
| MOUNTING | Wall or ceiling. The snap-fit design will facilitate easy installations. Easily removable mounting and knockout holes are provided |
| CABLE ENTRY | Ø20mm K/O hole |
| COMPLIANCE | SS 563 : Part 1 & 2, SS IEC 60598-2-22 |
| WARRANTY | 1 Year |
LED Economical non-maintained emergency twin light.
| Model | Lamp | Battery type |
|---|---|---|
| MR203L NC | 2 x 3W LED | Nickel Cadmium |
| MR203L NC WP | 2 x 3W LED | Nickel Cadmium |
